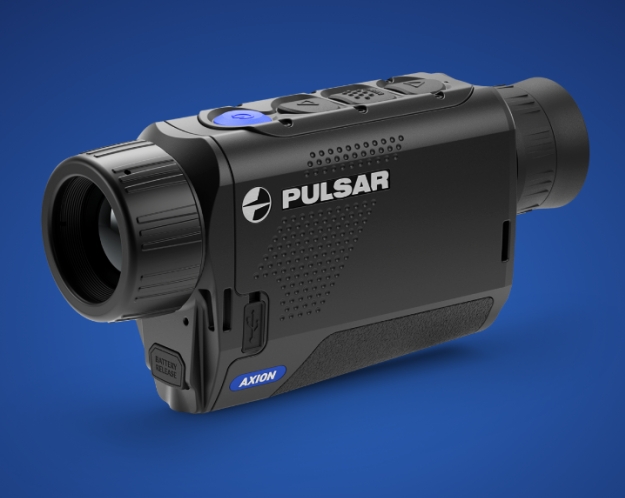

Pulsar Axion Key XM30S Thermal Monocular

Comments Comments

Adventure in the World of Darkness

Optional Image Caption



Designed to fit perfectly in one hand or in a standard-size pocket, Axion ensures comfortable grip and handling, as well as easy carrying.The compact design also makes Axion the perfect thermal imaging monocular for scouting and spotting.
Long Detection Range - A standard 1.8 m (6 ft) tall object can be detected at a 1200 m
LCOS microdisplay - Resolution, 960x720 pixels
Magnification, 2.5 – 10 x.

Designed to fit perfectly in one hand or in a standard-size pocket, Axion ensures comfortable grip and handling, as well as easy carrying. The compact design also makes Axion the perfect thermal imaging monocular for scouting and spotting.



FEATURES:

  • Long Detection Range

    12 µm Thermal Imaging Sensor

    Achieves higher optic magnification and observation distance in a more compact unit.

  • Rugged Magnesium Alloy Housing ensures high structural rigidity and ruggedness small weight and ergonomics.

  • B-Pack Mini Power System

MORE FEATURES
High Optic Magnification
Instant Start-up
Thanks to the new revolutionary electronics unit can be started almost instantly.
LCOS microdisplay
IPX7 Waterproof Rated
Runs flawlessly, even after submersion in up to 3 feet of water for up to 30 minutes.
Lightweight
Weighs around 300 grams not more than a regular rangefinder unit but offers far more significant capabilities.
Picture in Picture Function

Small image helps to zoom in on a target while retaining the rest of the field of view visible.

SPECIFICATIONS

  • Sensor 320x240 pix. @ 12 µm
  • Objective lens F28/1.2
  • Magnification, 2.5 – 10 x (x4 zoom)
  • Detection range, 1200 m
  • Sensor
  • Type uncooled
  • Resolution, 320x240 pixels
  • Pixel pitch, 12 µm
  • Frame rate, 50 Hz
  • Optics
  • Objective lens F28/1.2
  • Magnification, 2.5 – 10 x
  • Field of view (HxV), 7.8x5.9 / 13.7x10.3 degrees / m @ 100 m
  • Display Type LCOS
  • Resolution, 960x720 pixels
  • Range Performance
  • Detection range, 1200 m
  • Environmental Characteristics
  • Degree of protection, IPХ7 IP code (IEC60529)
  • Operating temperature range, -10 – +40 °С
  • Weight & Size
  • Dimensions, 143x41x69 mm
  • Weight, 0.25 kg
  • Power Supply
  • Output voltage, 3.0 - 4.2 V
  • Battery type Li-Ion Battery Pack APS3
  • Capacity, 3200 mAh
  • Operating time on battery pack (at t=22°C), 4+h *
  • External power supply 5V


Product Code SKU:YU77425

RRP $2,450.00
